Bolaida's All-in-One Ceramic Fiber Filter System combines dust removal, desulfurization, and denitrification in a single unit. Featuring high-temperature resistance (up to 750°C) and >99% filtration efficiency, it replaces traditional baghouses and metal filters with lower OPEX and 5-10 year lifespan. Ideal for cement kilns, waste incinerators, and glass furnaces.

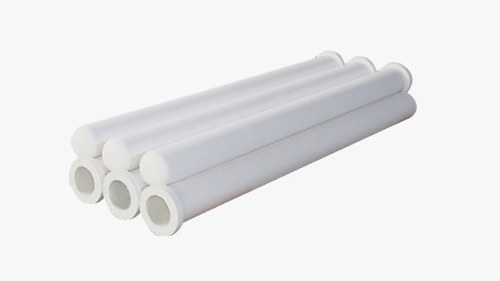

Manufactured from specialized aluminosilicate fibers via precision molding, these cylindrical filters operate similarly to baghouses but with ≥85% porosity and 99% filtration efficiency. Designed for extreme conditions (200–800°C), they deliver 5+ years of service life in high-temperature dust removal applications.

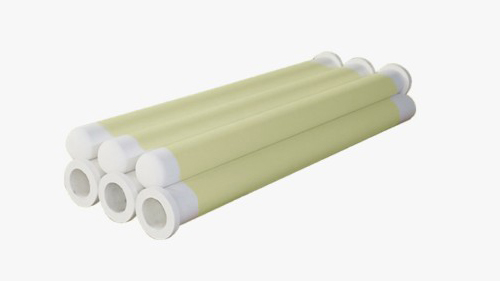

Built on the white tube substrate, this variant integrates nano-scale SCR catalysts to enable simultaneous removal of particulates, NOx, dioxins, SOx (auxiliary), and VOCs. The unique structure allows dust capture on the outer surface and denitrification within the tube wall. Widely deployed in glass kilns, waste incineration, biomass, and cement flue gas treatment.
| Product Name | Model | Catalyst Composition | Key Features |
| Ceramic Fiber Dust Collection Tube | Type ZY-DR01 | None | Dust Removal: ≤5mg/Nm³ (superior to bag filters) Temp. Resistance: Sustains 750°C |
| Ceramic Fiber Catalytic Tube | Type ZY-DR02 | V-Ti Based | DeNOx Efficiency: >98% (180-270°C) Dust Removal: >99.99% Pressure Drop:<350Pa Lifespan: 5-7 years |
| Ceramic Fiber Catalytic Tube | Type ZY-DR03 | W-Sn-Mn-Ce Mixed Oxides | DeNOx Efficiency: >95% (225-450°C) Dust Removal: >99.99% Pressure Drop:<300Pa Lifespan: 5-10 years |
01
• 50% smaller footprint vs. multi-tower systems
• Fully automated operation, minimal maintenance
• Lower CAPEX with modular construction
02
• 750°C continuous operation (vs. 230°C for bag filters)
• 30% lighter & corrosion-proof vs. metal filters
• PM ≤5mg/Nm³ efficiency replaces bags/metal tubes
03
• 5-10 years (2× bags / 1.5× metal filters)
04
• Dry process eliminates "white smoke" & aerosols
• 90% waste heat recovery enabled
05
• Custom catalyst coatings: SCR, dioxin, or VOC removal
06
• No wastewater/sludge, no pipe corrosion
• Clean, dry operation sites
